DSP-14K 2 Channel Digital Professional Amplifier with Ethernet

DSP-14K 2 Channel Digital Professional Amplifier with Ethernet

1. 2350W per channel @ 8 ohms 2. 4400W per channel @ 4 ohms 3. 2U height and 13kg weight 4. Class TD output stage with Ethernet 5. Regulated Switch Mode Power Supply 6. Full suite of protection and fault monitoring features

Thông tin sản phẩm

Mã sản phẩm
Xuất xứ
PRC
Hãng sản xuất
Sanway Audio
Bảo hành (tháng)
12
Giá tham khảo:
Liên hệ
Liên hệ ngay:
04.3652.1316 để có giá tốt nhất.

Description



The DSP-14K is the DSP version of FP14000, you could adjust the Mute, Polarity, Gain, EQ, Xover, Limiter on the computer. The greatest feature of this DSP software is the Wifi function. That means you could control many pieces DSP-14K amplifiers in one computer  by Wifi without much network cables, it is not only save money for the cables , but also reduce DSP control breaks due to cable faults. With two flexible channels of up to 4000 watts each, DSP on-board for each channel, and all the right connectors, the DSP-14K is ideal for live sound applications.


Features



1. Integrated front panel with channel Select and volume buttons, input and output LED metering, intuitive navigation buttons, LED power button and indicator.

2. 20 factory preset configurations that can be modified and stored in the user presets.

3. Powerful Intrinsic Correction processing maximizes the sonic performance of Sanway loudspeakers.

4. Two channels of full function onboard loudspeaker DSP with crossover and parametric EQ filters, limiting and alignment delay eliminate the need for outboard loudspeaker processors.

5. Flexible Amplifier drives most any loudspeaker system or configuration by distributing total amplifier power across one, or two channels.

6. 110V or 220V switch mode power supply


Specification



MODEL DSP-14K
 8Ω Stereo Power 2×2350W
 4Ω Stereo Power 2×4400W
 8Ω Bridged Monon Power 8700W
 Frequenty Response 20Hz-20kHz  ±0.5dB
 THD+N(Rated power,4Ω/KHz)% 0.10%
 Signal Noise Ration(dB) 110dB
 Input Impedance 20KΩ Balanced / 10kΩ Unbalanced
 Output Connectors Speakon Connectors(NEUTRIK)
 Power Requirement 100-120V-50-60Hz  or  200-240V-50-60Hz
 Dimension  483×377×88mm
 Net weight 13kg

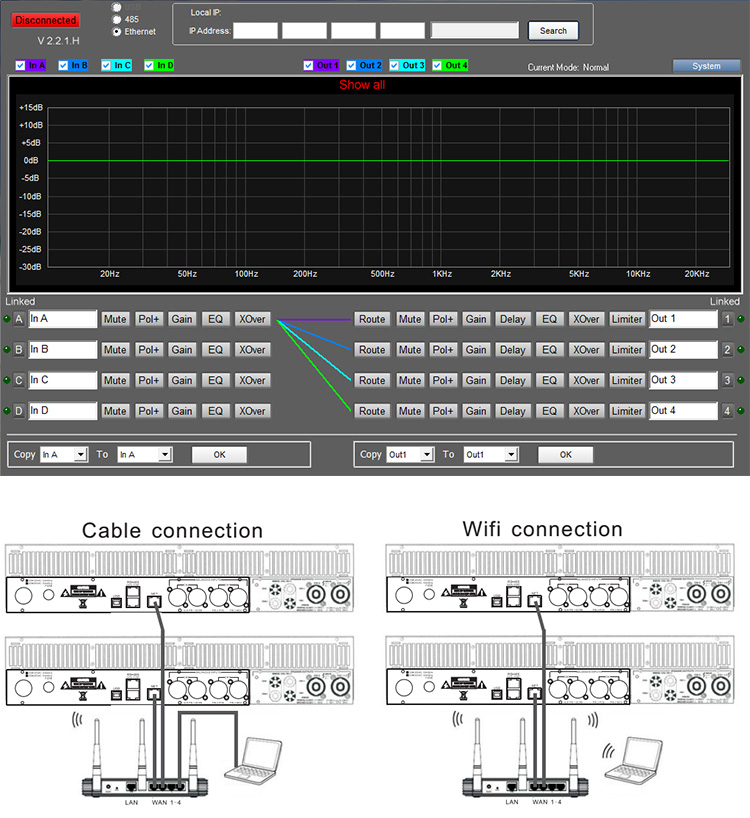

DSP software

DSP software
