Bộ trộn hình vMix U

Bộ trộn hình vMix U

vMix-U là bộ trộn video chuyên dụng, được thiết kế theo chuẩn công nghiệp RU, bao gồm 4 đường vào HD-SDI, với nhiều tính năng mạnh mẽ, như: Streaming, Recording Video, Graphics, Virtual Sets, Chroma Key, ...

Thông tin sản phẩm

Mã sản phẩm
Xuất xứ
Hãng sản xuất
Bảo hành (tháng)
Giá tham khảo:
Liên hệ
Liên hệ ngay:
04.3652.1316 để có giá tốt nhất.
vMix U is a complete live production system packed into a compact 1U rackmount unit.
Powered by the versatile vMix live production software, not only can this unit be used to power your entire live production with 4 camera switching, streaming and recording, it is also just as versatile as a companion to any existing live production setup. This means you can use the vMix U as a multi bitrate HD streaming encoder, video recorder, dedicated graphics titler, video playout server or to take advantage of the any number of features available in vMix and plug it into to your existing workflow using SDI or NDI connectivity.

Powerful Storage Capabilities

The vMix U includes 500GB of built in super fast SSD storage and two hot swap SSD drive bays in the front, allowing you to add additional storage to your productions quickly and easily.

The drive bays support most 2.5" SSD drives and can be used as additional space for recordings or to load media assets that can be used instantly right from within vMix.

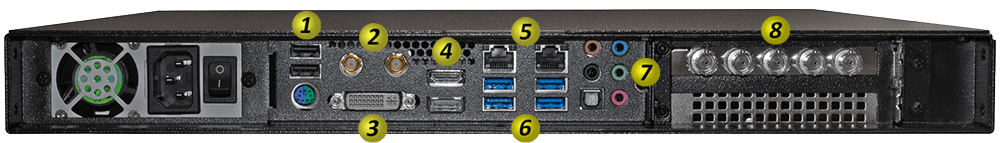

vMix U Connection Diagram
USB 2.0 WiFi Antenna DVI HDMI
Gigabit Ethernet USB 3.0 3.5mm Audio I/O 4 Channel HD SDI I/O

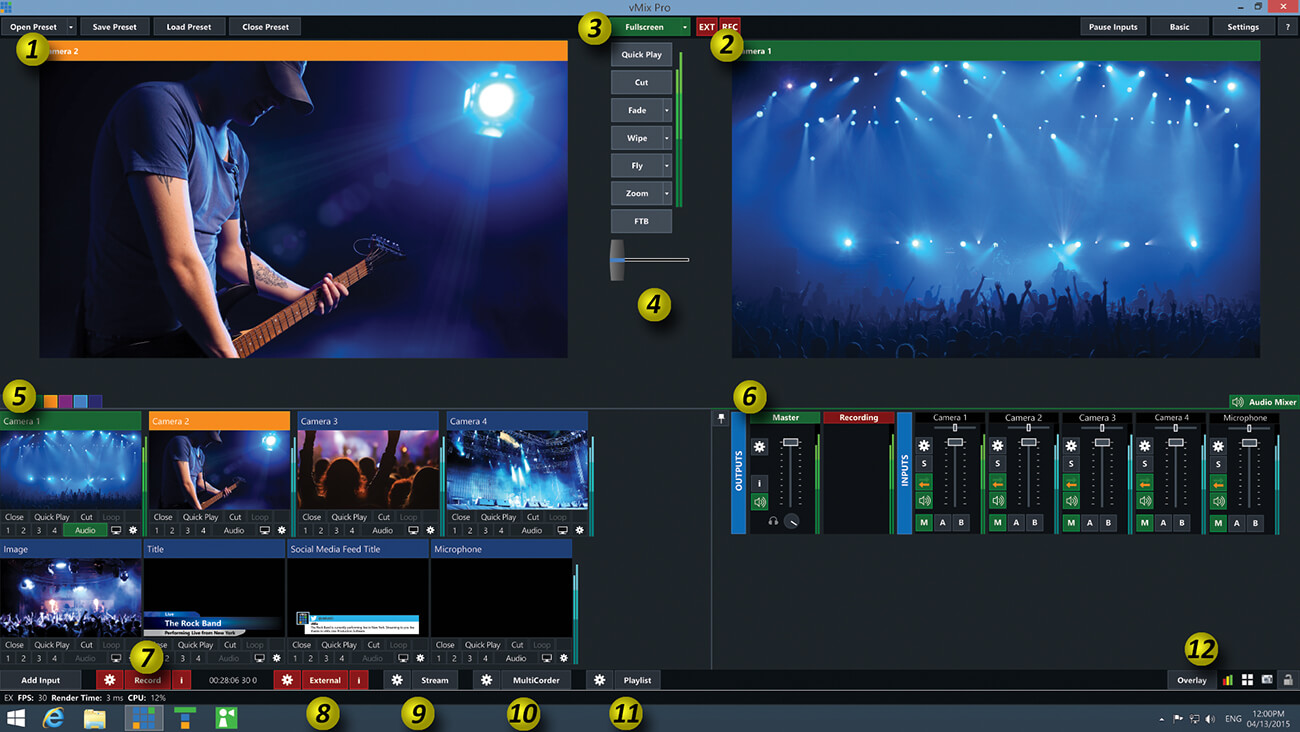

vMix Interface
Preview Inputs - Cameras, Videos, Graphics Live Streaming
Program Audio Mixer MultiCorder - ISO Recording
Fullscreen Output Recording PlayList Automation
T-Bar SDI Output Overlay controls


vMix U

Intel Quad Core CPU with Iris Pro Graphics, 16GB Memory, Gigabit Lan and WiFi

Windows 10, vMix, vMix Social and vMix Title Designer preinstalled.


500GB Internal SSD Storage. 2 Hotswap Trayless SSD Drive bays for potentially unlimited plug and play storage.

Video Inputs

Up to 4 simultaneous live HD-SDI video sources w/embedded audio in any combination of HD and SD format

Audio Inputs 16-channel SDI embedded, compatible with USB devices (Focusrite, MOTU, M-Audio, etc)
Media Up to 1000 multi-source inputs including video/audio files, PowerPoint (Microsoft Office Req.), graphics, streams, desktop apps, titles, live social media.
Transitions Cut, Fade, Zoom, Wipe, Slide, Fly, CrossZoom, FlyRotate, Cube, CubeZoom, VerticalWipe, VirtualSlide, Merge and two custom Stinger channels.
Mix/Effects Each input includes 5 "Multi View" overlay channels to create complex Mix/Effects. Add logo bugs, lower thirds, titles, text in combinations to create compelling productions.
Downstream Keyers 4 DSKs / overlays with individual transitions, alpha channel and custom scaling/positioning.
Image Adjustment Color Correct, Deinterlace, Sharpen, Zoom, Rotate, Pan and Crop any input in real time. All effects are processed in 4:4:4 32bit color space for optimal video quality.
Audio Mixer Independent control and monitoring of all audio sources with Mute, Solo, Follow (Auto Mixing), Delay, EQ, Compressor and Gain.
Virtual Sets 6 free virtual sets from Virtualsetworks.com. 5 built-in sets with full motion camera presets and high quality GPU-based chroma key. Easily build your own virtual set using standard tools
Desktop capture Included screen capture from local/remote PC-Mac sources
NDI Support for multi-channel video input and output over a Gigabit Ethernet network using open Network Device Interface protocol
Instant Replay Single camera instant replay system built in with continuous recording and playback.
Controllers Includes standard keyboard and mouse control with configurable shortcuts/macros. Optional vMix Control Surface available. Built in Web Controller can be used to control vMix from any web connected device on the local network. MIDI controllers also supported.
Social Media Integrated application for live or queued insertion of Facebook, Twitter or IRC feeds. Approve and control content from any web-connected device
Output Simultaneous record, stream and output to multiple formats/resolutions
Video Outputs 2x 3G/HD/SD-SDI, 2x HDMI, 1x DVI
Audio Outputs 1/8" Stereo, 2-channel SDI embedded
Recording AVI, MP4, MPEG-2, MOV and MXF for both Program and ISO recordings with a variety of compression formats available.
Live Streaming RTMP streaming to any CDN including USTREAM, Twitch, DaCast, YouTube and more
Multiview Live multiviewer output to secondary display or HD-SDI with configurable layouts and titles, audio meters and tally display.
Supported Live
Video Formats
1080P, 1080i, 720p and SD Multi Format capable.
23.98, 24, 25, 29.97, 30, 50, 59.94, 60 frame rates supported.
Physical Dimensions 16.75" (W-not including side rails) x 1.75" (H) x 16" (D)
