Bộ trộn hình vMix Go

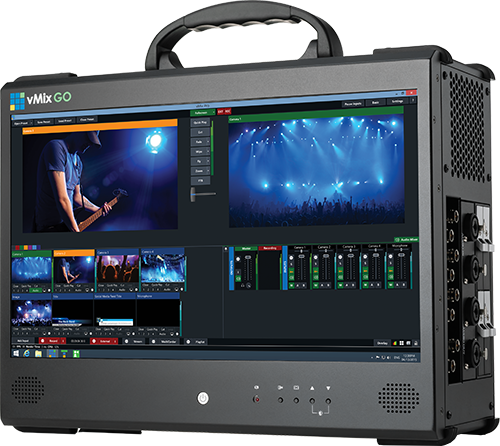

vMix Go là bộ trộn hình được tích hợp đầy đủ, "cắm là chạy", bao gồm phầm mềm trộn hình vMix, làm chậm vMix Play, và phần cứng IO 4K, hỗ trợ tới 8 nguồn video HD-SDI.

Thông tin sản phẩm

Mã sản phẩm

vMix_G

Xuất xứ

Áo

Hãng sản xuất

vMix

Bảo hành (tháng)

Giá tham khảo:

Liên hệ

Liên hệ ngay:

04.3652.1316 để có giá tốt nhất.

Thông tin chung
Thông số kỹ thuật

The power is in your hands to produce professional live events with extreme portability and maximum features.

With up to eight full HD camera inputs and 2 HD outputs, vMix GO allows productions of all sizes.

If you produce house of worship, sports, meetings, training or any other live event, vMix GO is your go-to rig.

Based on award-winning vMix software, vMix GO gives you nearly unlimited input types, clean transitions, live image adjustment, virtual sets, instant replay and more.

Hiện tại, vMix GO có 3 model khác nhau có thể lựa chọn:

vMix GO 4: 4 HD-SDI I/O;

vMix GO Base: 8 HD-SDI I/O;

vMix GO Plus: Tương tự bản vMix Go Base, có thêm ổ lưu trữ trong 2TB.

Có thể Download Datasheet vMix Go tại đây >>>

Technical Specifications

vMix GO 4	Intel i7 4Ghz, Nvidia GTX 950 2GB, 500GB SSD System Drive, 16GB DDR4 Memory
vMix GO Base	Intel i7 4Ghz, Nvidia GTX 950 2GB, 500GB SSD System Drive, 16GB DDR4 Memory, Shuttle Pro Replay Controller
vMix GO Plus	Intel i7 4Ghz, Nvidia GTX 950 2GB, 500GB SSD System Drive, 32GB DDR4 Memory, 2TB Storage, Failover Drive, WiFi, Shuttle Pro Replay Controller

Video Inputs	Up to 8 simultaneous live HD-SDI video sources w/embedded audio in any combination of HD and SD format
Audio Inputs	1x2 Balanced Neutrik XLR/TRS combo jack, 1/8" Stereo Line-in, 16-channel SDI embedded, compatible with USB devices (Focusrite, MOTU, M-Audio, etc)
Media	Up to 1000 multi-source inputs including video/audio files, PowerPoint (Microsoft Office Req.), DVD, graphics, streams, desktop apps, titles, live social media. Network sources limited only by bandwidth. No artificial DDR players, all imported clips are live and ready to play.
Transitions	Cut, Fade, Zoom, Wipe, Slide, Fly, CrossZoom, FlyRotate, Cube, CubeZoom, VerticalWipe, VirtualSlide, Merge and two custom Stinger channels.
Mix/Effects	Each input includes 5 "Multi View" overlay channels to create complex Mix/Effects. Add logo bugs, lower thirds, titles, text in combinations to create compelling productions.
Downstream Keyers	4 DSKs / overlays with individual transitions, alpha channel and custom scaling/positioning.
Image Adjustment	Color Correct, Deinterlace, Sharpen, Zoom, Rotate, Pan and Crop any input in real time. All effects are processed in 4:4:4 32bit color space for optimal video quality.
Audio Mixer	Independent control and monitoring of all audio sources with Mute, Solo, Follow (Auto Mixing), Delay, EQ, Compressor and Gain.
Virtual Sets	6 free virtual sets from Virtualsetworks.com. 5 built-in sets with full motion camera presets and high quality GPU-based chroma key. Easily build your own virtual set using standard tools
Desktop capture	Included screen capture from local/remote PC-Mac sources
Instant Replay	Full four camera instant replay system built in with continues recording and playback.
Controllers	Includes standard keyboard and mouse control with configurable shortcuts/macros. Optional vMix Control Surface available. Built in Web Controller can be used to control vMix from any web connected device on the local network. MIDI supported.
Social Media	Integrated application for live or queued insertion of Facebook, Twitter or IRC feeds. Approve and control content from any web-connected device
Output	Simultaneous record, stream and output to multiple formats/resolutions
Video Outputs	2x 3G/HD/SD-SDI, 1x HDMI, 1x DisplayPort
Audio	1x2 Balanced Neutrik XLR/TRS combo jack, 1/8" Stereo, 16-channel SDI embedded
Recording	AVI, MP4, MPEG-2, MOV and MXF for both Program and ISO recordings with a variety of compression formats available.
Live Streaming	RTMP streaming to any CDN including USTREAM, Twitch, DaCast, YouTube and more
Multiview	Live multiviewer output to secondary display or HD-SDI with configurable layouts and titles, audio meters and tally display.
Supported Live Video Formats	2160P (4K), 1080P, 1080i, 720p and SD Multi Format capable. 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 frame rates supported.
Physical Dimensions	14.1" x 16.5" x 7.0" / ~22lbs

Diagrams

4 Removable Hotswap SSD

Balanced Audio XLR/TRS Combo

Up to 8 HD-SDI Inputs
2 HD-SDI Outputs

Interface

Preview	Inputs - Cameras, Videos, Graphics	Live Streaming
Program	Audio Mixer	MultiCorder - ISO Recording
Fullscreen Output	Recording	PlayList Automation
T-Bar	SDI Output	Audio Mixer and Overlay controls
