Sonnet Fusion RX1600 Expansion

Sonnet Fusion RX1600 Expansion

Fusion RX1600RAID Expansion là bộ lưu trữ ngoài kết nối với máy tính qua cổng USB 3.0; Có thể lắp tới 16 drive chuẩn SATA cho: 32TB/48TB/64TB/96TB; Chuẩn SATA với internal SAS expanders, removable storage, và bao gồm điều khiển 6Gb/s SAS/SATA PCIe 2.0 RAID; Hỗ trợ config JBOD, RAID 0, 1, 4, 5, 6, and 10; Kết nối 4 x mini-SAS External Connectors; Chuẩn eSATA Interface tốc độ lên tới 6 Gb/s; Có thể mộng cho chuỗi Fusion RX1600; Hỗ trợ tốc độ đọc:1000 MB/s; Hỗ trợ tốc độ ghi: 750 MB/s; Công nghệ hệ thống Fusion Storage; Tương thích Windows, Mac, và Linux; Đáp ứng tiêu chuẩn RoHS; Chuẩn công nghiệp 3U Rackmount;

Thông tin sản phẩm

Mã sản phẩm
Xuất xứ
Hãng sản xuất
Bảo hành (tháng)
Giá tham khảo:
Liên hệ
Liên hệ ngay:
04.3652.1316 để có giá tốt nhất.

Easy Storage Expandability

When you need access to more than the original storage capacity of your Fusion RX1600 storage system, Sonnet offers an economical upgrade path that is simple to deploy—Fusion RX1600 Expansion systems. All Fusion RX1600 series storage systems feature dual internal SAS (Serial Attached SCSI) expanders that enable you to connect additional RX1600 Expansion systems in a daisy chain, no additional RAID controller card needed. This simplifies installation and significantly reduces your cost to expand capacity. As a matter of fact, incorporating more storage capacity is nearly as simple as installing additional Fusion RX1600 Expansion systems into the rack and connecting a few cables. Of course, if you don't need access to all your files all the time, Fusion storage systems’ user-swappable drive modules enable you to easily change sets of drives as you go.

Status Supervisor

Hard Drive Monitoring IconThe reliability of the Fusion RX1600 Expansion system is further enhanced through SES (SCSI Enclosure Services) 2.0 compliance and enhanced S.M.A.R.T (Self-Monitoring Analysis and Reporting Technology) data reporting for each hard drive installed in the system. Built into the Fusion RX1600 Expansion enclosure, SES functionality provides enhanced real-time monitoring and reporting of drive, power supply, and temperature status, with real time results displayed in utility application screens and the illumination of conveniently placed LEDs on the enclosure. Warning alarms sound in case of a power supply or fan issue, too. S.M.A.R.T. data criteria can be used to notify you of an impending drive failure and enable you to minimize downtime as a result.

Enterprise RAID Edition Hard DrivesDriving Force

Fusion storage systems employ Enterprise/RAID Edition hard drives that have been selected for their superior performance, error handling, and reliability characteristics, especially when used in RAID groups. These drives are subjected to hours of additional, stringent testing to check for soft errors, vibration, and other reliability predictors. Just the sturdiest drives pass these tests and are prepared with special RAID-optimized firmware to become the building blocks of a super-reliable Fusion storage system.

Key Features

Easy Storage Expansion—Add 32TB, 48TB, 64TB, or 96TB additional capacity(1) to your existing Fusion RX1600 series storage system; install the chassis into the rack and connect a few cables

Economical—No need to purchase additional RAID controller to add capacity, connects directly to your existing Fusion RX1600 series storage system

Reliable—includes 2TB, 3TB, 4TB, or 6TB Enterprise/RAID Edition or select, Sonnet certified hard drives with proven reliability, and supports SES and S.M.A.R.T data reporting

Complete Expansion System—Expansion system includes enclosure, drive modules, cables, rackmount kit, software, and user's guides

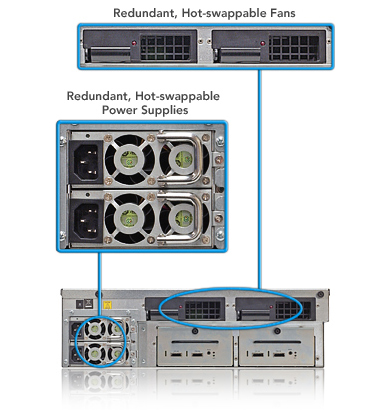

Fusion RX1600RAID Components Redundancy

Protection Redundancy. Fusion RX1600 Expansion employs redundant, hot-swappable power supplies and redundant, hot-swappable fans with auto failover protection, so you can keep working should one of those components need to be replaced.

Part No.
FUS-RX16S-32TB Fusion RX1600RAID Expansion (32TB)
FUS-RX16S-48TB Fusion RX1600RAID Expansion (48TB)
FUS-RX16S-64TB Fusion RX1600RAID Expansion (64TB)
FUS-RX16S-96TB Fusion RX1600RAID Expansion (96TB)
Warranty 5-year
Form Factor Rackmount storage enclosure
External Connectors Four mini-SAS
eSATA Interface Speed Up to 6 Gb/s
Data Transfer Speed Up to 1000 MB/s read and 750 MB/s write, depending on configuration
Drives Supported Up-to-date compatible hard drives listed on our Certified Hard Drive Compatibility Chart
Supported Drive Configurations Hardware-based JBOD; RAID 0, 1, 4, 5, 6, and 10
Supported Video Formats 2K (2048 x 1556) LOG RGB, 10-bit 1080 4:4:4 HD, uncompressed 8-bit 1080i HD, ProRes 422, DV, HDV, DVCPRO, and uncompressed SD
Power Supplies 350W, 100-260V, 50/60Hz Universal
Operating Temperature +41º F to +104º F (5º C to +40º C)
Dimensions (WxDxH) 17.4 x 21 x 5.2 in (42.2 x 53.3 x 13.2 cm)
Weight (with drives) 59.5 lbs (27 kg)
Noise Fusion RX1600 Expansion: 60 dBA
Package Contents
  • Fusion RX1600 Expansion Rackmount Storage Enclosure
  • Two rackmount rail assemblies and mounting hardware
  • Sixteen 3.5" drive modules
  • Two power cords
  • Two 2-meter mini-SAS cables
  • Documentation and CD
